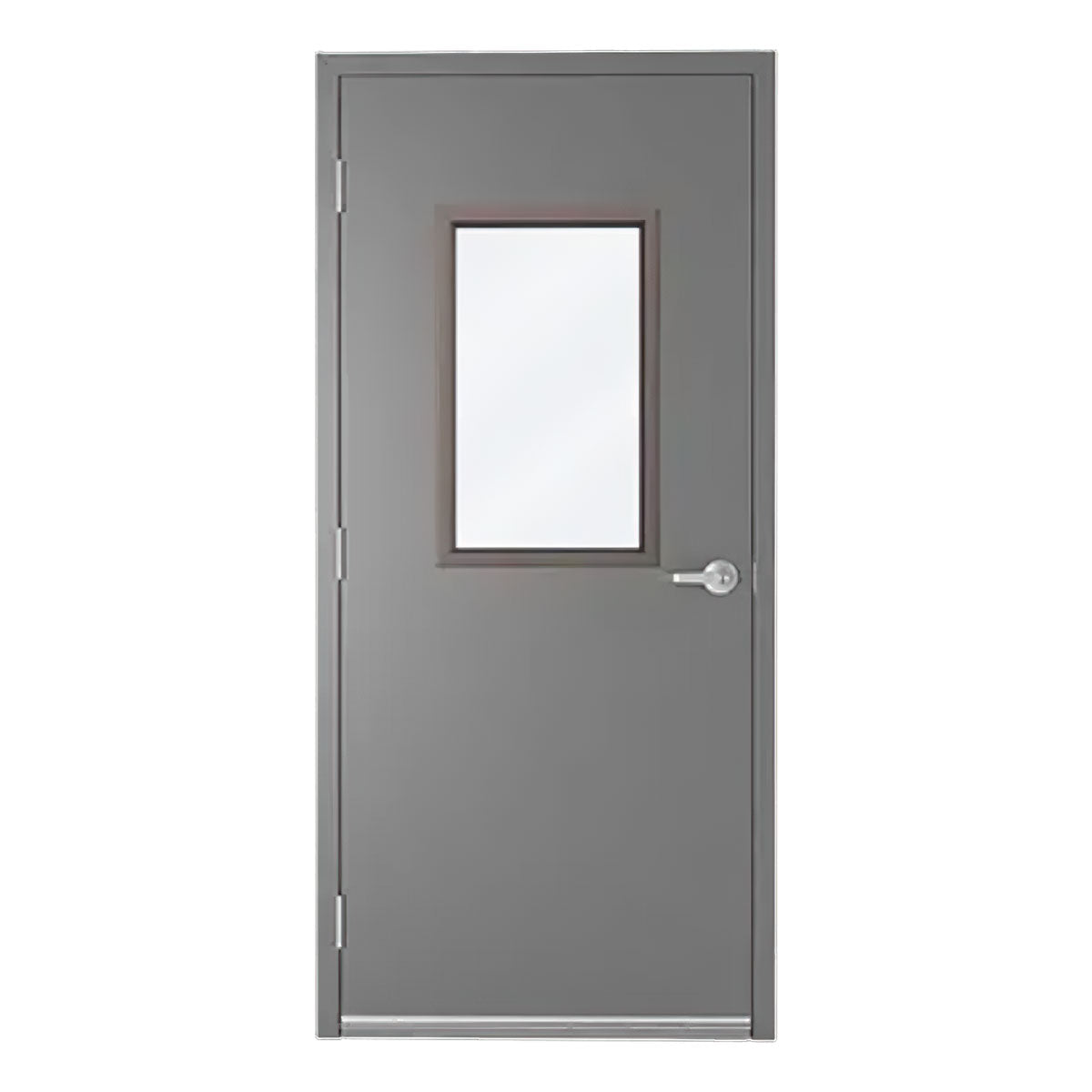

Hollow Metal Door Type H (Half Glass / Wide Stiles)

Up to 3 hours fire rating with Intertek/FM certification
16GA (1.5mm), 18GA (1.1mm), 20GA (0.9mm)
A40 Galvanized Or Cold-rolled Steel Skins
Construction is 1-3/4" (45mm) Thickness

Hinge, closer, lock and strike plate reinforcements shall be provided.
Hinge reinforcement: 10GA (3.5mm)
Closer reinforcement: 12GA (2.5mm)
Lock reinforcement: 16GA (1.5mm)
Strike plate reinforcement: 16GA (1.5mm)

The top, bottom and side closures are fabricated from 16GA (1.5mm)thick channel shaped steel sections welded to the front and back door skins Flush top channel:16GA(1.5mm) Laser-welded side-seamed edge

Widths up to and including Heights up to and including 8'0" Available with polystyrene core or honeycomb core

Other locations are available, we make to request.
